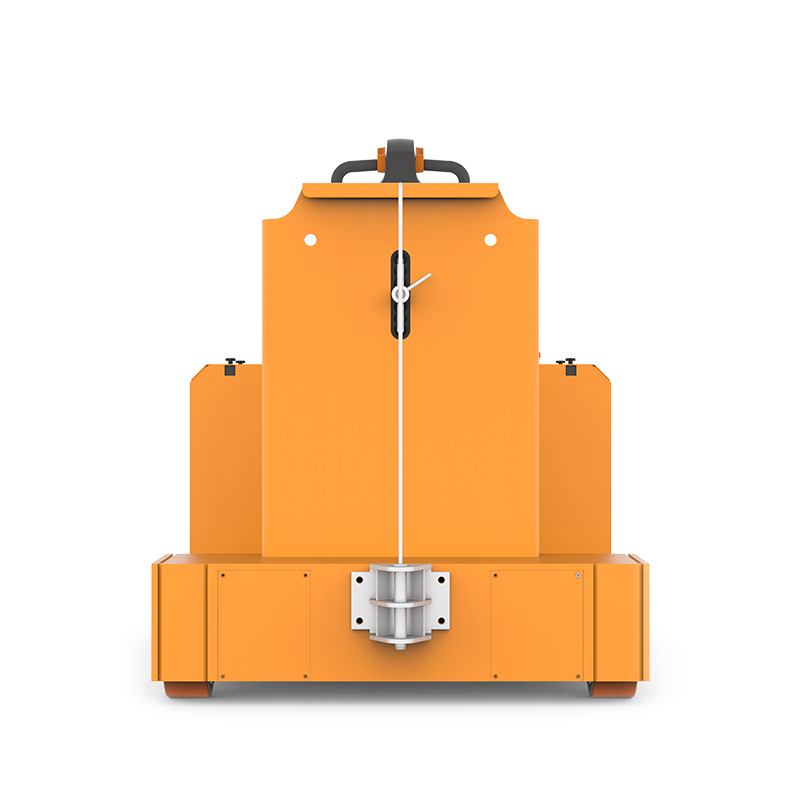

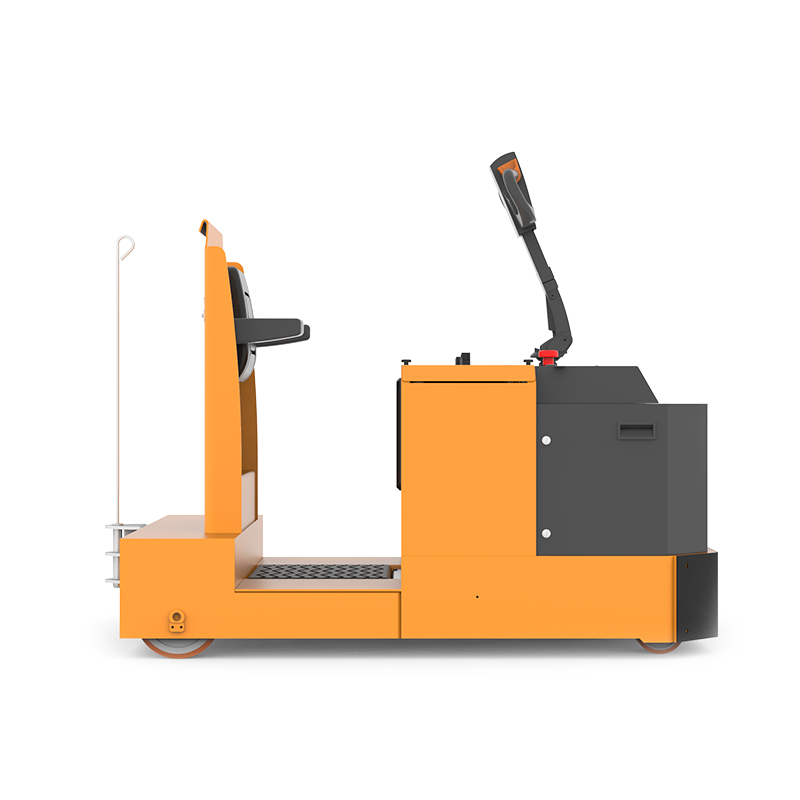

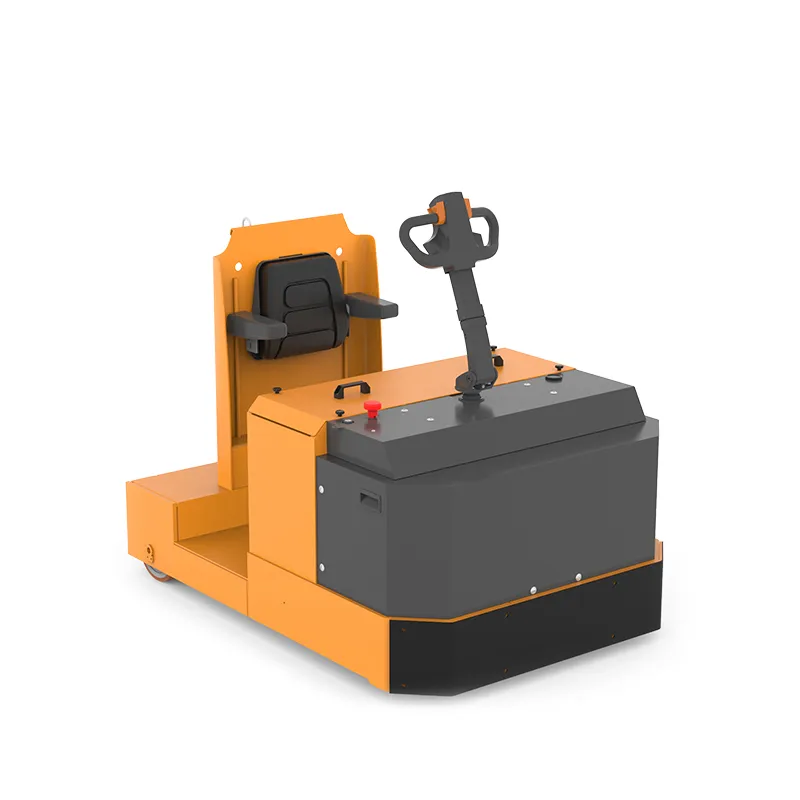

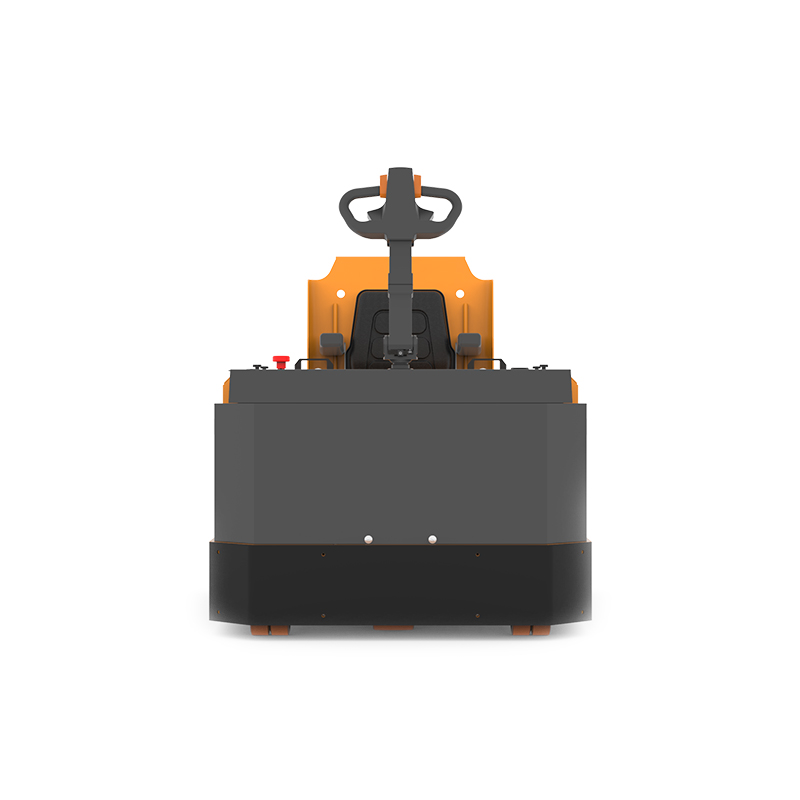

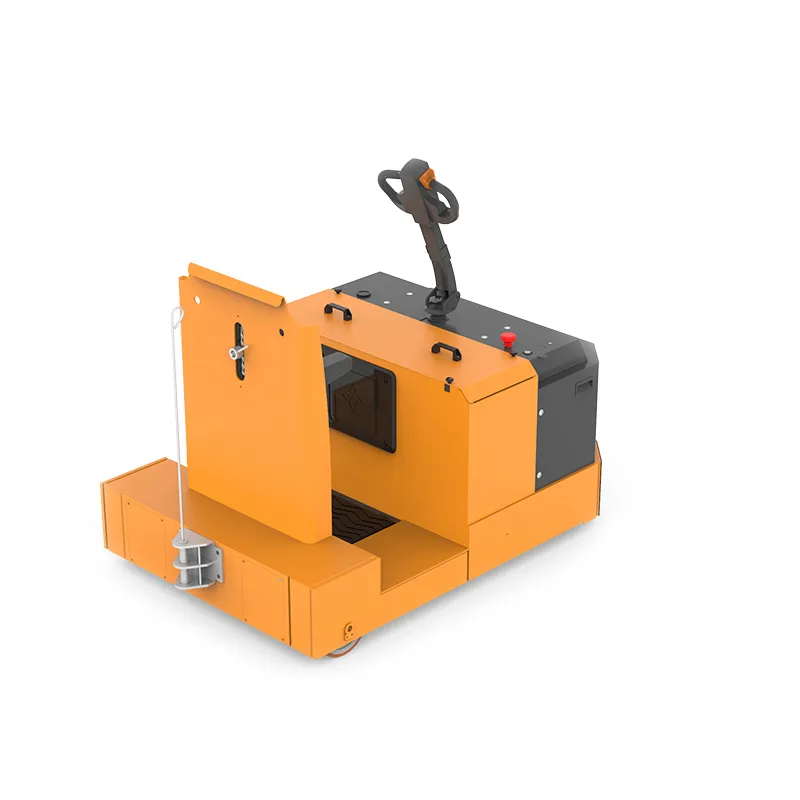

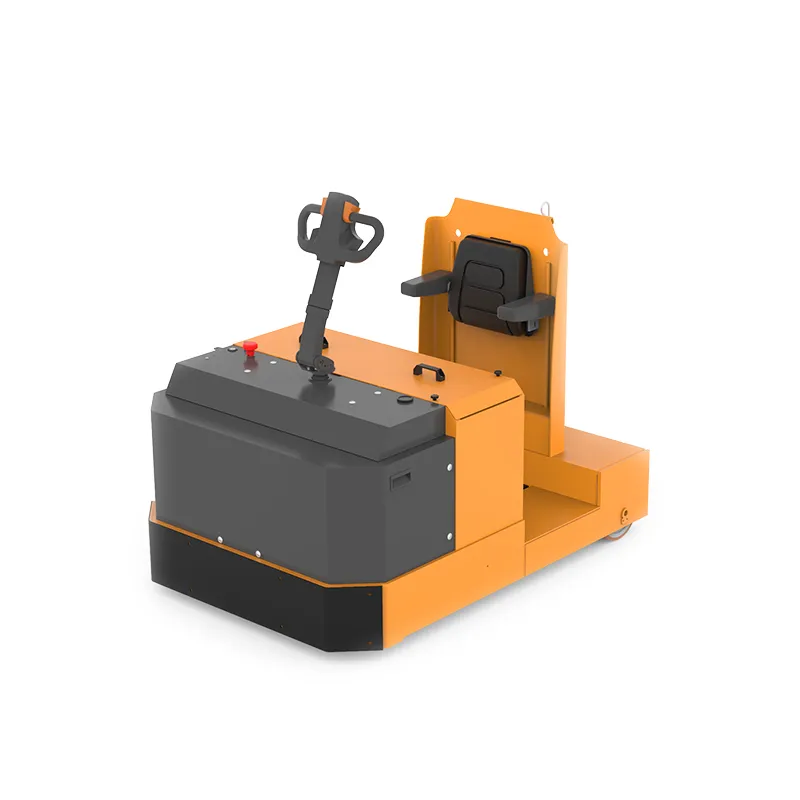

XTE series 10-ton tow tractor is suitable to be used in confined places, as well as appropriate for multiple load transfer over medium distances.
Menu
XTE series 10-ton tow tractor is suitable to be used in confined places, as well as appropriate for multiple load transfer over medium distances.
| Maximum Load Capacity | |
|---|---|
| Application |
1.5-Ton – Double Deep Reach Truck – RRE15
1.6-Ton Man down Electric VNA Forklift – VDA116
1.6-Ton Man up Electric VNA Forklift – VUE116-135S
2-Ton – Electric sitting on reach truck Germany mast profile- FRB20
3-Ton – Multi Directional Forklift 3-10m long material handling -RSEW130
4 ton- Electric seat on towing tractor – XTA40
Electric towing tractor can be used for:
1. Wide space
2. High delivery frequency
3. Long working hours
4. Poor ground conditions, need a solid wheel
5. Limited operating space
6. Floor working
7. Plant area needs turnover
8. Need to transport finished goods
Detail features
1. Adjustable handle
The handle can be adjusted within a large range suitable for different drivers’ driving habits by improving driving comfort.
2. Prepositive folder
The required documents can be placed at the front of the tugger, thus improving working efficiency.
3. Part Maintenance
Remove the front cover, the control system and driving system can be accessible for easy maintenance.
4. Side loading and unloading of storage battery
Side loading and unloading of storage batteries can realize easy daily maintenance such as inspection and fluid replacement without lifting. There are optional batteries such as FAMM, GS, HOPPECKE, and Trojan.
5. The wide backrest is equipped with an armrest on both sides so that the operators can be more comfortable and safe when leaning on the backrest.
6. Short-distance micromotion
There is one inching switch on both sides of the whole tugger, realizing easy docking of draft gear and carts. This can improve the working efficiency of the tugger.
7. The storage box adopts a humanized design. It can be used to store papers tools etc.
8. Floating pedal
This pedal features anti-slipping and shock absorption, thus optimizing driver safety and comfort.
Specification sheet:
| Technical data for XTE100 10-ton Electric Towing Tractor | |||||
| Characteristics | 1.1 | Manufacturer | EffiFork | ||
| 1.2 | Manufacturer’s type designation | XTE100 | |||
| 1.3 | Drive: electric (battery or mains), diesel, petrol, fuel gas | Battery | |||
| 1.4 | Operator type: hand, pedestrian, stand-on, seat-on, order-picker | Stand-on | |||
| 1.5 | Load capacity/rated load | Q (t) | 10 | ||
| 1.7 | Rated drawbar pull | F (N) | ≥F | 2500 | |
| 1.9 | Wheelbase | y (mm) | ±1% | 1270 | |
| Weight | 2.1 | Deadweight | kg | ±3% | 2000 |
| 2.2 | Axle loading, laden front/rear | kg | ±3% | – | |
| 2.3 | Axle loading, unladen front/rear | kg | ±3% | 1432/586 | |
| Tires/chassis | 3.1 | Tires: Solid rubber (R), Superelastic (S), Pneumatic(P), Polyurethane (PU) | PU | ||
| 3.2 | Tyre size, front | Ø x w(mm) | Ø312x 140 | ||
| 3.3 | Tyre size, rear | Ø x w(mm) | Ø 250x 110 | ||
| 3.4 | Additional wheels (dimensions) | Ø x w(mm) | Ø 150x 60 | ||
| 3.5 | Wheels, number front/rear (x = driven wheels) | 1x-4/2 | |||
| 3.6 | Tread, front | b10 (mm) | ±2% | 830 | |
| 3.7 | Tread, rear | b11 (mm) | ±2% | 1066 | |
| Dimension | 4.7 | Height of overhead guard(cabin) | h6 (mm) | ±1% | 1550 |
| 4.8 | Seat height relating to SIP/stand height | h7 (mm) | –/200 | ||
| 4.9 | Height of tiller in drive position min. / max. | h14 (mm) | 1165/1243 | ||
| 4.12 | Coupling height | h10 (mm) | ±2% | 218/304 | |
| 4.19 | Overall length | l1 (mm) | ±1% | 1882 | |
| 4.21 | Overall width | b1/b2 (mm) | ±1% | 1220 | |
| 4.32 | Ground clearance, center of wheelbase(min) | m2 (mm) | -5% | 62 | |
| 4.35 | Turning radius(min) | Wa (mm) | ≤Wa | 1650 | |
| Performance | 5.1 | Travel speed, laden/unladen | km/h | ± 10 % | 3/3.5 |
| 5.5 | Drawbar pull, laden/unladen | N | 2500 | ||
| 5.6 | Max. drawbar pull, laden/unladen | N | 7500 | ||
| 5.8 | Max. gradeability, laden/unladen | % | 2.5/8 | ||
| 5.10 | Service brake | Electromagnetic | |||
| Electric-engine | 6.1 | Drive motor rating S2 60 min | kW | 4.5 | |
| 6.3 | The battery according to DIN 43531/35/36 A, B, C, no | Special case | |||
| 6.4 | Battery voltage/nominal capacity K5 | V/Ah | 48/280 | ||
| Addition | 8.1 | Type of drive control | AC | ||
| 10.7 | Sound pressure level at the driver’s seat according to EN 12053 | dB (A) | < 70 | ||
| 10.8 | Towing coupling, type DIN 15170 | Latch | |||
